Piston Compressor
Power & Performance for Industrial Excellence
M R Compressors introduced reciprocating air compressors designed to meet the requirements of industries and applications that depend on reliable, long-running compressed air. Built with a focus on high performance, durability, low operating cost and reduced maintenance,
these compressors are suitable for applications where consistent and dependable air delivery is essential.The compressors are manufactured using sturdy, carefully selected materials and are thoroughly assembled and tested to ensure reliable performance and a conditioned air output. Their robust construction and proven reciprocating technology are designed to provide dependable operation over extended running periods while keeping maintenance requirements and overall operating costs under control.
High-Strength Cylinder
Engineered from premium cast iron with deep fins, ensuring rapid heat dissipation and extended durability, even in demanding conditions.
Precision-Crafted Piston
Made from low-expansion aluminum alloy, providing enhanced efficiency, minimal friction, and prolonged lifespan
Durable Valve Plate
Constructed using high-grade steel, designed for superior resistance to pressure fluctuations and maximum operational efficiency.
Balanced Crankshaft
Dynamically balanced for smooth operation, reduced vibrations, and increased longevity, supported by high-quality roller/ball bearings.
Advanced Cooling System
Equipped with a specially designed inter-cooler and after-cooler, ensuring optimal temperature control for consistent performance.
Intelligent Pressure Switch
Diaphragm-operated with automatic venting for seamless on/off control and no-load starting, preventing excessive power consumption.
We cater to
Robust, Reliable Performance for Heavy-Duty Tasks
Our advanced air compressors are designed to meet the diverse needs of various industries.Whether you require clean, oil-free air for sensitive environments or robust, reliable performance for heavy-duty tasks, our compressors provide the perfect solution
Technical Specification
MR Compressors introduced reciprocating air compressors with a focus on every industry and application that needs long running high performance compressor at low noise level with reduced cost and maintenance. The sturdy materials are assembled and tested thoroughly to bring a conditioned output. We promise to deliver quality air at minimal cost.
Key Features
- Special cast iron cylinders that are deep finned for quick heat dissipation.
- Low expansion aluminum alloy pistons for reduced wear and tear.
- Special steel material valve plates for high resistance and high efficiency.
- Dynamically balanced crankshafts fitted with roller/ball bearings for smooth operation.
- High quality copper intercooler and after cooler to reduce air temperature.
- Diaphragm operated on/off pressure switch with auto-venting and no-load starting for accurate pressure management.
Reciprocating Air Compressor
| SINGLE STAGE | |||||||
|---|---|---|---|---|---|---|---|
| Model | Motor HP | Pressure KG/CM² | Pressure PSI | No of Cylinder | Piston Displacement CFM | Piston Displacement LIT/MIN | Tank Capacity |
| MR-10 | 1 | 7 | 100 | 1 | 4.5 | 127 | 110 |
| MR-20 | 2 | 7 | 100 | 1 | 8 | 227 | 110/160 |
| MR-20 D | 2 | 8.5 | 120 | 2 | 8 | 227 | 160 |
| MR-30 | 3 | 7 | 100 | 2 | 12.5 | 354 | 160 |
| MR-30 L | 3 | 8.5 | 120 | 2 | 12 | 340 | 160 |
| MR-50 | 5 | 7 | 100 | 2 | 22 | 635 | 220 |
| MR-75 | 7.5 | 7 | 100 | 2 | 32.5 | 920 | 220/500 |
| MR-100 | 10 | 7 | 100 | 2 | 42.5 | 1202 | 220/500 |
| MR-150 | 15 | 7 | 100 | 3 | 60 | 1698 | 500 |
| MR-200 | 20 | 7 | 100 | 3 | 80 | 2264 | 500 |
| TWO STAGE | |||||||
| Model | Motor HP | Pressure KG/CM² | Pressure PSI | No of Cylinder | Piston Displacement CFM | Piston Displacement LIT/MIN | Tank Capacity |
| MRH-200 | 2 | 12 | 168 | 2 | 7 | 196 | 160/220 |
| MRH-300 | 3 | 12 | 168 | 2 | 11 | 310 | 160/220 |

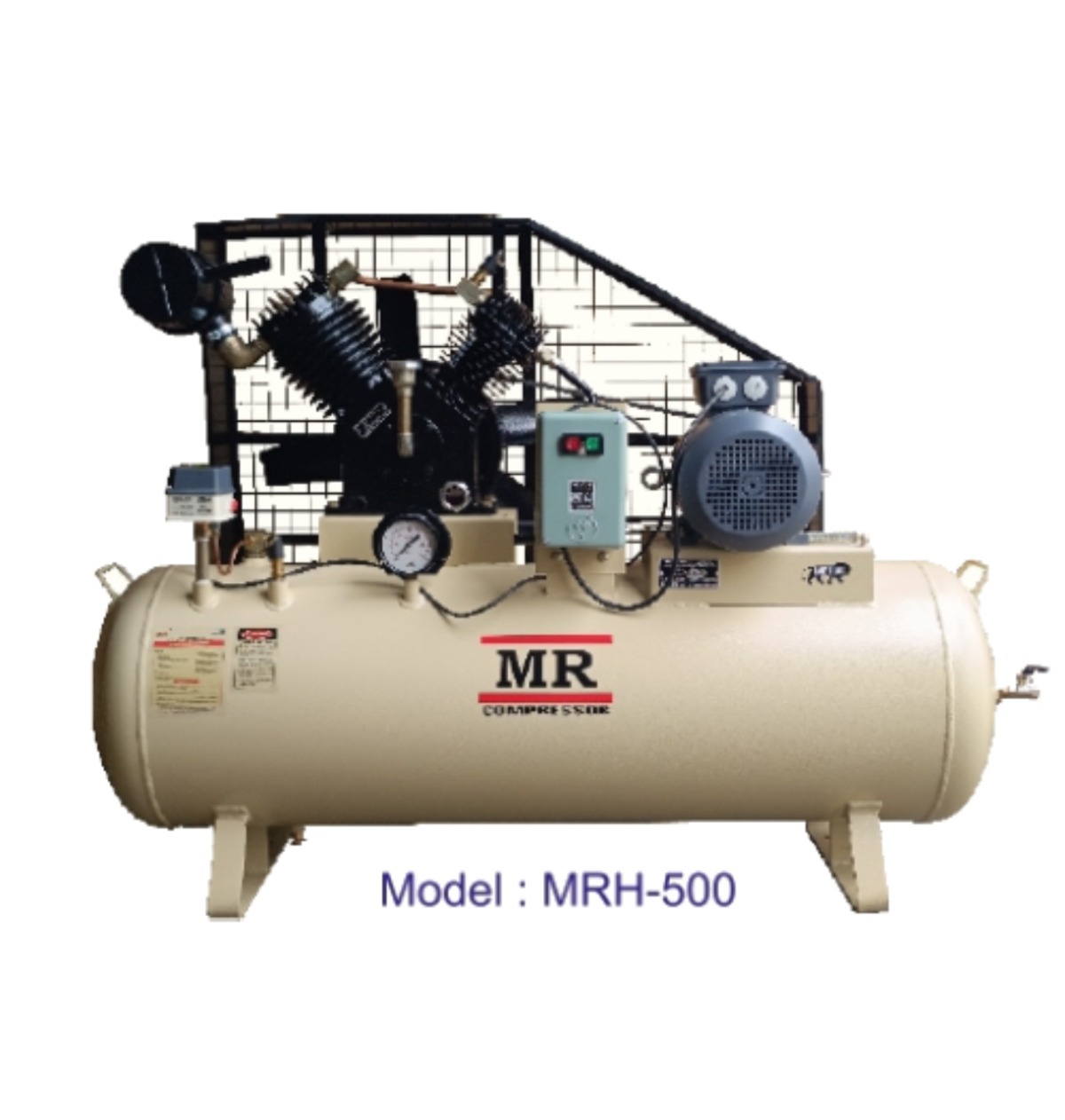

| MRH-500 | 5 | 12 | 168 | 2 | 17.5 | 500 | 220/500 |

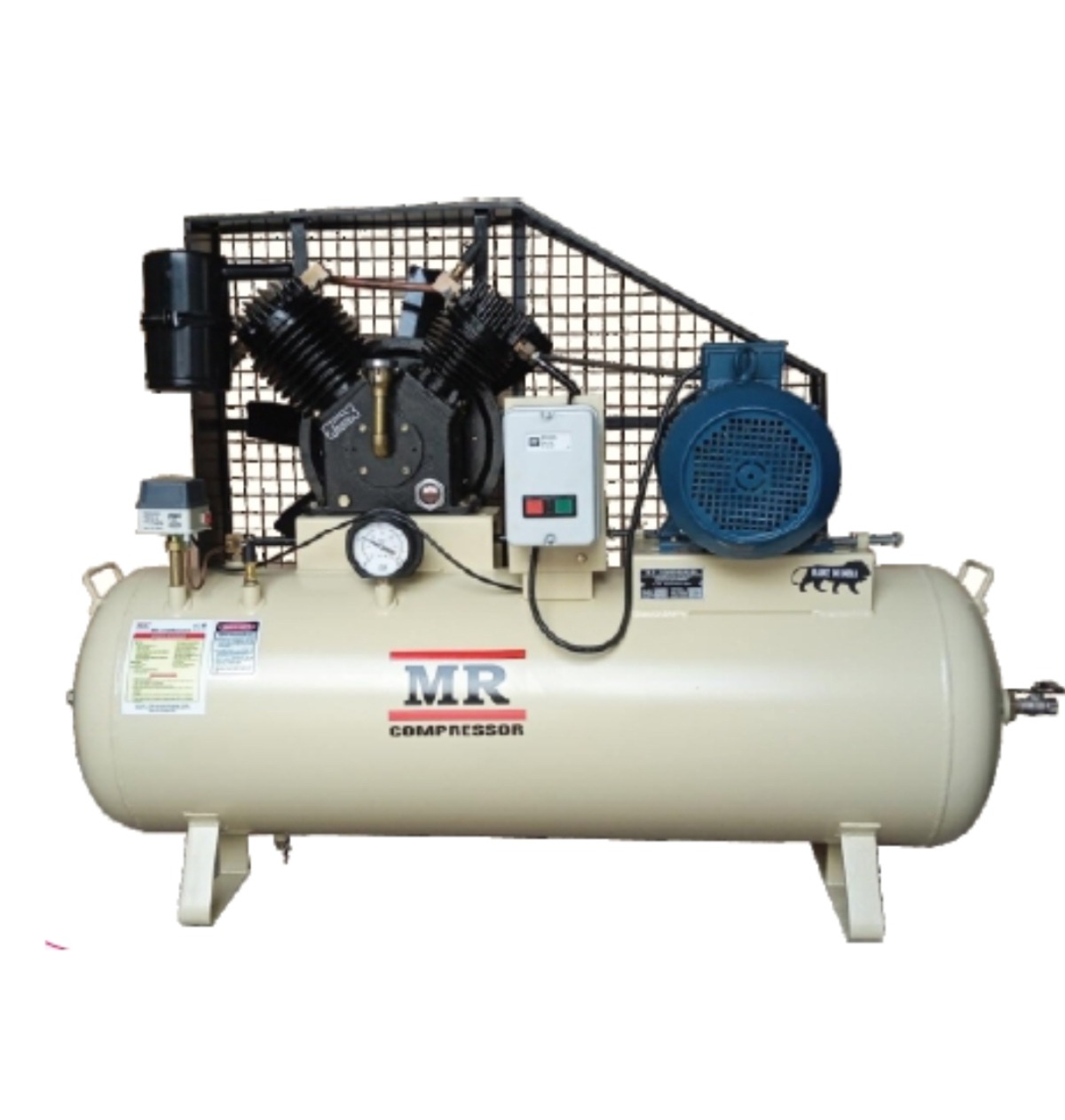

| MRH-600 | 7.5 | 12 | 168 | 2 | 22 | 635 | 220/500 |

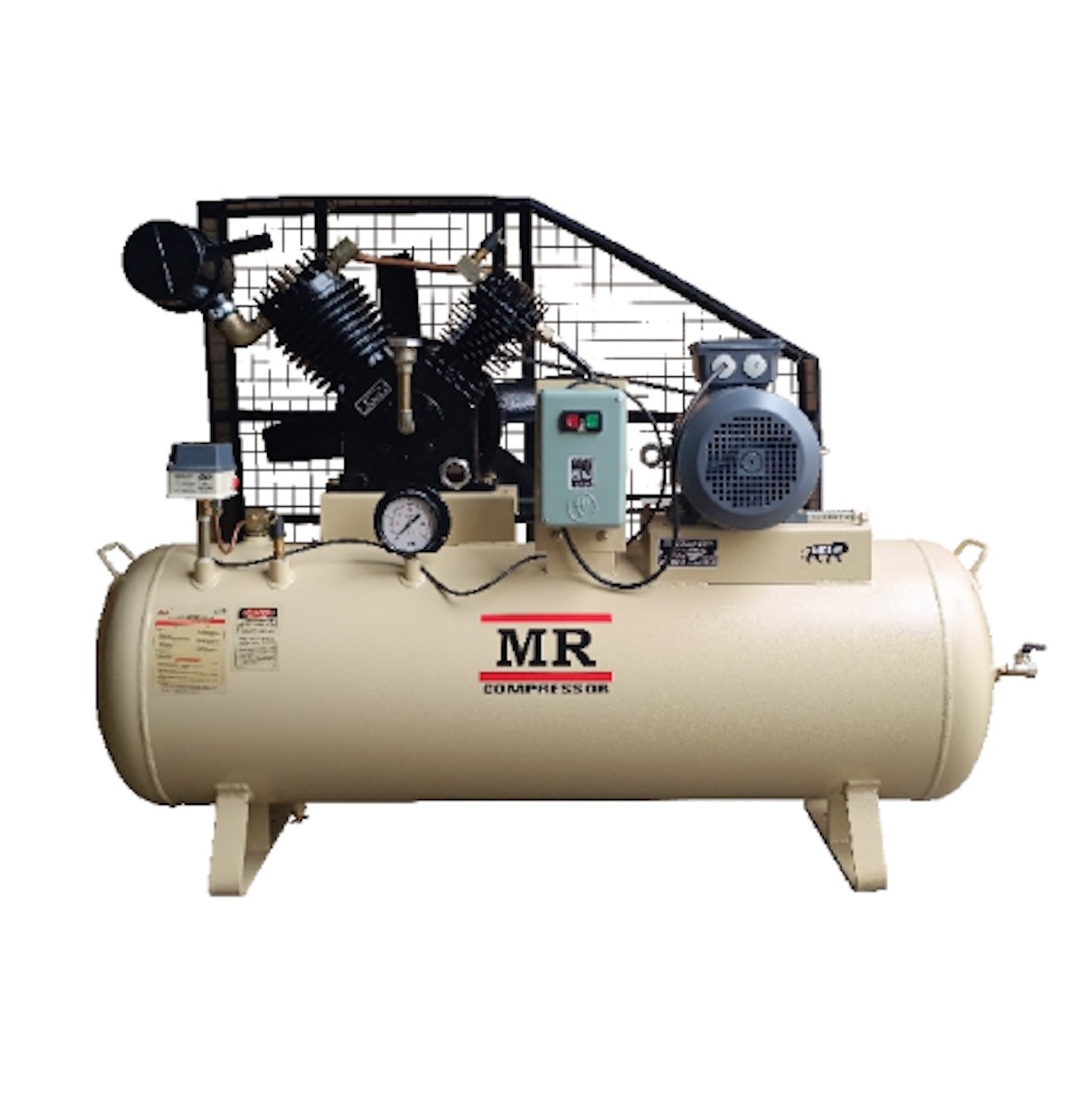

| MRH-1000 | 10 | 12 | 168 | 3 | 35 | 991 | 500 |
| MRH-1250 | 12.5 | 12 | 168 | 3 | 45 | 1273 | 500 |
| MRH-1500 | 15 | 12 | 168 | 3 | 54 | 1535 | 500 |
